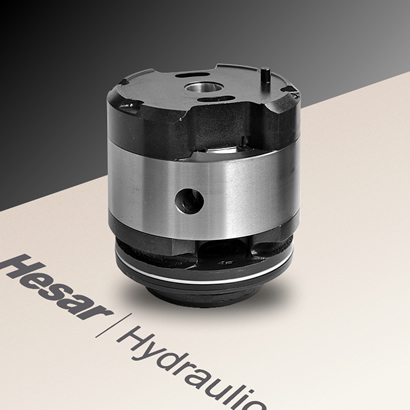

Model Cole:

(F3-)	PC-	T6C	-005	-R
Prefix	Cartridge Kits Mark	Series	Geometric Displacement	Rotation
F3-Viton seals Omit-If not required	PC-Single pump cartridge kits double pump shaft end PCT-Double pump cover end pump cartridge kits	T6C	003,005,006,008,010,012,014,017,020,022,025,028,031	Viewed from shaft end L-CCW R-CW
		T6D	014,017,020,024,028,031,035,038,042,045,050
		T6E	042,045,050,052,057,062,066,072,085

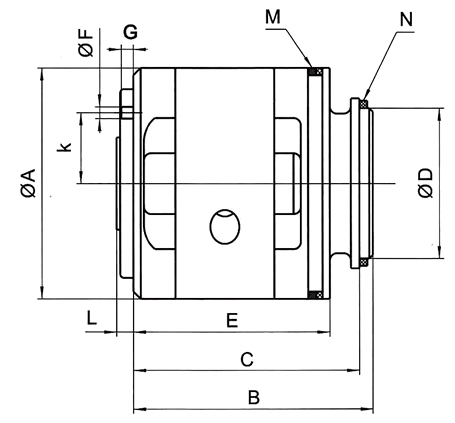

Shape Dimensions:

Series	ФA	B	C	ФD	E	ФF	G	K	M-Gasket	N-O Ring	L
T6C	95.22	99.4	93.8	61.9	81.1	4.8	5	43.66	94.5×87.5×3.5	68×61×3.3	7
T6D	123	132	125.8	72	110.3	6.4	6.4	41.2	113.1×106.5×3.5	79×71×3.3	N/A
T6E	143.08	150.3	142.5	88	122.8	8	8	49.23	142.8×136×3.5	94×87×3.3	N/A

Series	Inner spline dentiform parameter of rotor
	Modulus	Number of teech	Pressure angle	Major diameter	Minor diameter
T6C	40/80	28	45°	18.87	17.4
T6D	24/48	25	45°	28.2	25.9
T6E	24/48	34	45°	37.72	35.42
