Introduction:

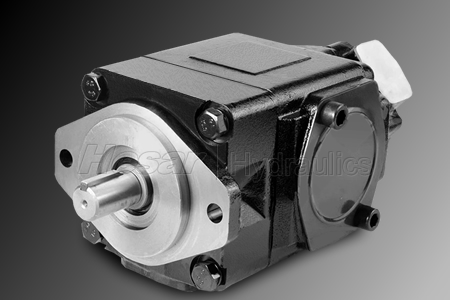

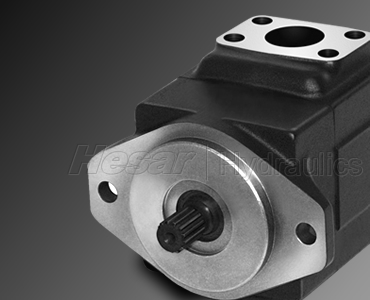

Benefiting from the double lip vane design,the vane's working lefe of T6 series pin type vane pump is double as long as that of oudinary vane
pump,while abrasion between vanes and cam ring has been reduced,for there is a little pin force the vane. Compact size,high pressure capacity, low
presses,die casting machines, plastic injection moulding and other machineries.

T6 Series Single Pumps Model Code:

T6C	-020	-1	R	00	-10	1
Series	Displacement	Shaft	Rotation	Outlet Position	Design	Seal Type
T6C	003,005, 006, 008, 010,012, 014 017, 020,022, 025,028.,031?		(Viewed from shaft of pump) L-CW R-CCW	(Viewed from shaft of pump) 00:Outlet upwards, Inlet downwards 01:Outlet upwards, Inlet upwards 02:Outlet upwards, Inlet leftwards 03:Outlet upwards, Inlet rightwards	10	1:NBR 5:Viton
T6D	B14,B17,B20,B22,B24,B28,B31 B35,B38,B42,B45,B50
T6E	042,045, 050,052, 62,066 072,085

Technical Data:

Series	Code	Displacement (mL/r)	Speed (rmp)		Max (Mpa)
			Min	Max	Intermittent	Continuous
T6C	003	10.8	600	2800	280	240
	005	17.2
	006	21.3
	008	26.4
	010	34.1
	012	37.1
	014	46.0
	017	58.3
	020	63.8
	022	70.3
	025	79.3		2500
	028	88.8			210	160
	031	100.0
T6D	014	47.6	600	2500	240	210
	017	58.2
	020	66.0
	024	79.5
	028	89.7
	031	98.3
	035	111.0
	038	120.3
	042	136.0		2200
	045	145.7
	050	158.0			210	160
T6E	042	132.3	600	2200	240	210
	045	142.4
	050	158.5
	052	164.8
	057	179.8
	062	196.7
	066	213.3
	072	227.1
	085	269.0		1800	120	80

T6 Series Double Pumps Model Code:

T6CC	-025	-020	-1	R	00	-10	1
Series	Displacement	Displacement	Shaft	Rotation	Outlet position	Design	Seal type
T6CC T6DC T6EC T6ED				(Viewed from shaft of pump) L-CW R-CCW	(Viewed from cover end of pump) See image below	10	1:NBR 5:Viton

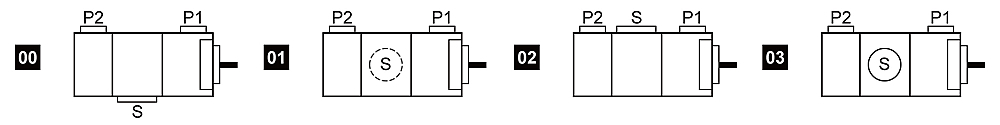

Inlet and outlet position:
